Laser diodes modules
Designed to fulfill specific customer’s needs
Modular concept
Compact and robust housing
Best price-performance ratio
Description
The LASOS® LDM-XT laser series is the latest generation of laser diode modules designed to fulfil specific customer’s needs for a particular application. Its modular concept allows adapting different requirements regarding optical and electronical properties. Whether it is delivered as an OEM component for instrumentation or for stand alone applications in science or research. The customer
has the choice between several options which ensure always the best price-performance ratio. With its compact and robust housing, easy setup and intelligent control the LASOS® LDM-XT laser series is the ideal choice when reliability and accuracy matter.
The laser diode modules are available in a free beam version or with a permanently aligned coupling into a single mode polarization maintaining fiber. The fiber patchcord can be designed by the customer choosing from various options regarding jacket and connectors. Additionally, the customer can choose from a range of optomechanical components like precision fiber plugs and sockets for adjustment free docking to an instrument or beam combining to transfer several beams into one collinear beam or (one) fiber.
Fields of Application
Microscopy
DNA Sequencing
Holography
Flow Cytometry
Specifications
Accessory

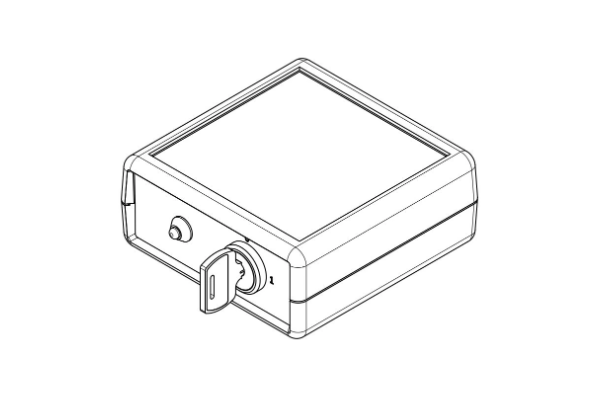

SwitchBox
SSI 1200
- CDRH compliant
- Part of Stand Alone Kit
Power supply 12 V
- Operating Voltage: 12 V
- Operating Current: 2.5 A
- Part of Stand Alone Kit
Heat sink
LHA 1200
- Operating Voltage: 12 V DC
- Operating Current: 80 mA
Drawings

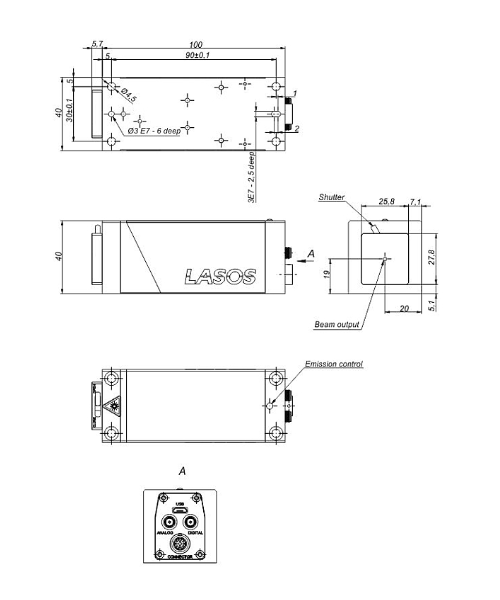

LASOS LDM-XT Free beam with shutter (TS version)
LASOS LDM-XT Free beam with adapter plate (A version)

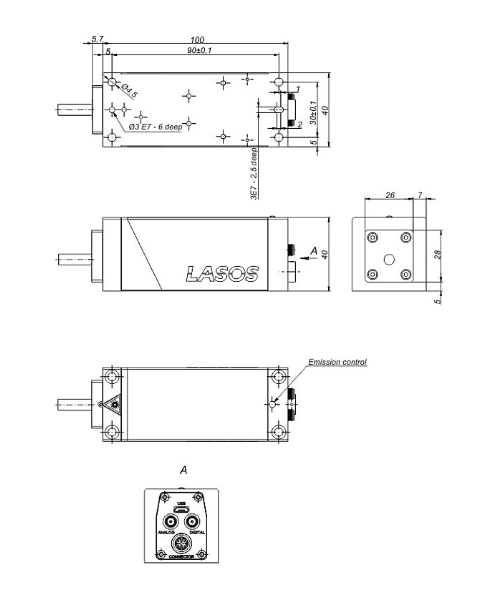

LASOS LDM-XT Fiber coupled with shutter
