Fiber components & standard assembled fibers
Beam combining and splitting
Up to 6 channels
400 nm – 650 nm (770 nm – 800 nm on request)
High mechanical and thermal stability
High reproducibility
No readjustment after exchanging patchcord
Electro-mechanical shutter for each channel (optional)
Description
Pluggable fiber coupling
All LASOS laser types can be offered with appropriate fiber coupling systems.
Fields of Application
Optical system design
Fiber coupling system
Beam combining and splitting
Adjustment-free optical connections
Specifications
Customized fiber
Customized fiber connectors
Customized fiber patchcords
Type
Single wavelength
375 … 785 nm
Broadband fiber
375 – 405 nm
405 – 640 nm
440 – 670 nm
458 – 515 nm

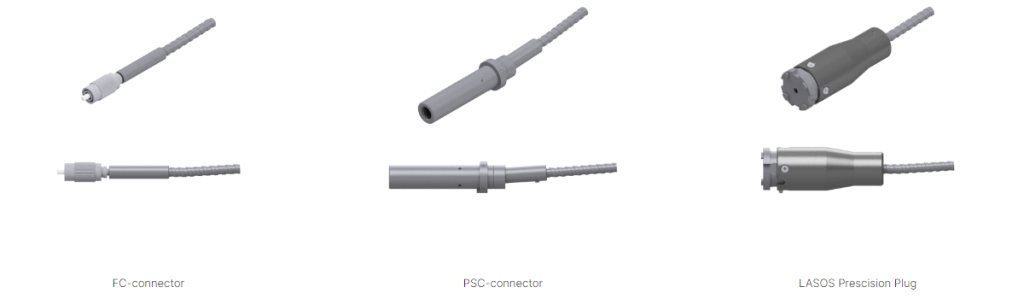

Fiber connector (input)
FC
SMA
LASOS Prescision Plug
Coupler (D12)
Fiber connector (output)
FC
SMA
LASOS Prescision Plug
Collimator (D12)
Polish
full
half
center
(0°, 8°)
Fiber Jacket
FRNC (orange)
Steel reinforced silicon (gray)
Stainless Steel
Accessory
Removable fiber coupling

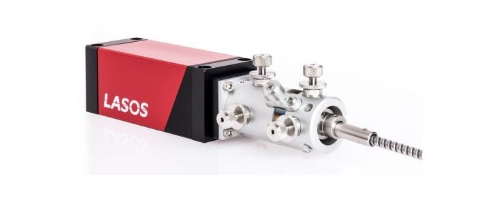

LASOS laser with FS adapter plate and common fiber coupler
LASOS laser with PSC adapter plate and common fiber coupler

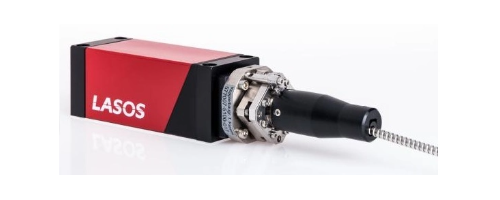

LASOS LDM-XT laser series with adapter plate and LASOS Precision Fiber Coupling
Optical & Optomechanical components
Standard Beam Diameter 0.7 mm
Collimator D12 / PSC

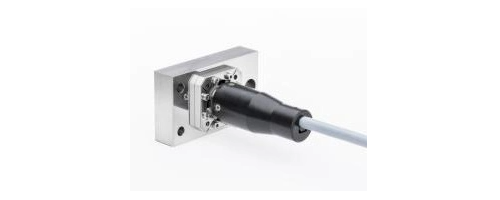

LASOS Precision Plug & Socket

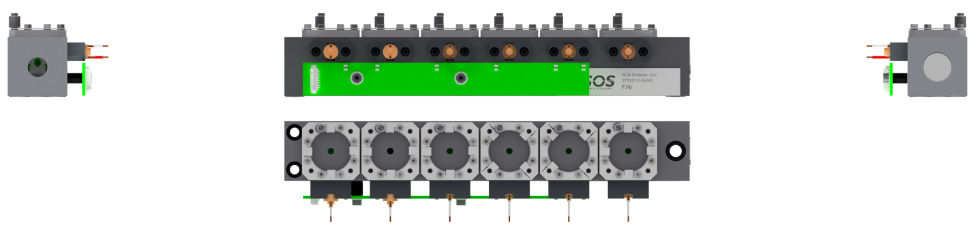

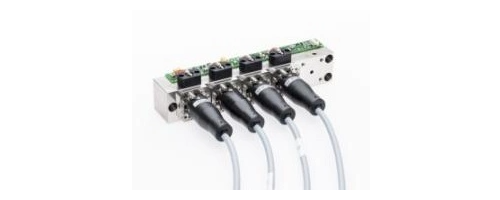

LASOS Beam combining/splitting, up to 6 wavelenghts combined in one collinear beam
LASOS Precision fiber to fiber coupling
Drawings

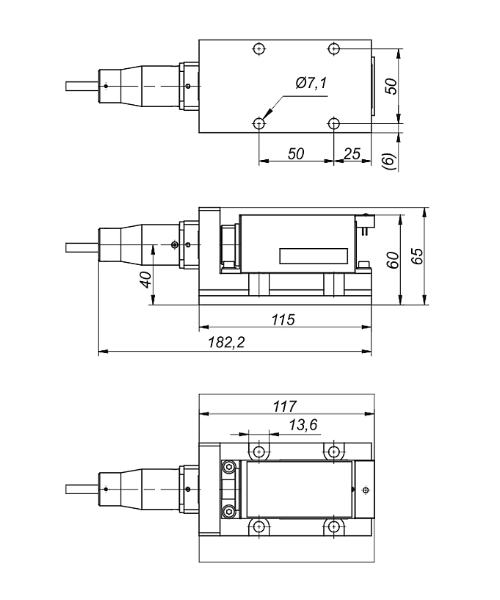

LASOS DPSS laser series fiber coupled
LASOS LDM-XT laser series fiber coupled

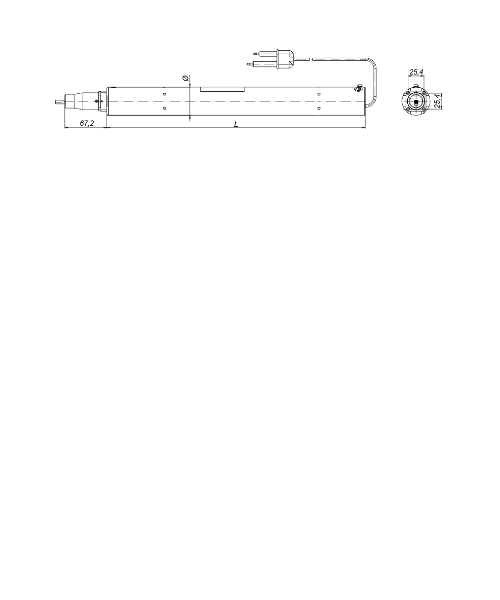

LASOS He-Ne laser series fiber coupled
